What Is a Screened Subnet?
In today’s digital age, network security is a top priority for businesses and individuals. One vital component of a secure network architecture is a screened subnet. Also known as a perimeter network or DMZ (Demilitarized Zone), a screened subnet acts as a buffer zone between an organization’s internal network and the outside world, typically the internet. This article will explain a screened subnet, how it works, and why it’s essential for cyber security.
What Is a Screened Subnet?
A screened subnet is a network architecture design that enhances security by creating an isolated network segment – often referred to as a DMZ – between the internal network and external networks. This segment hosts public-facing services such as:
- Web servers
- Email servers
- FTP servers
- DNS servers
By placing these services in the screened subnet, organizations minimize the risk of external threats reaching the internal network.

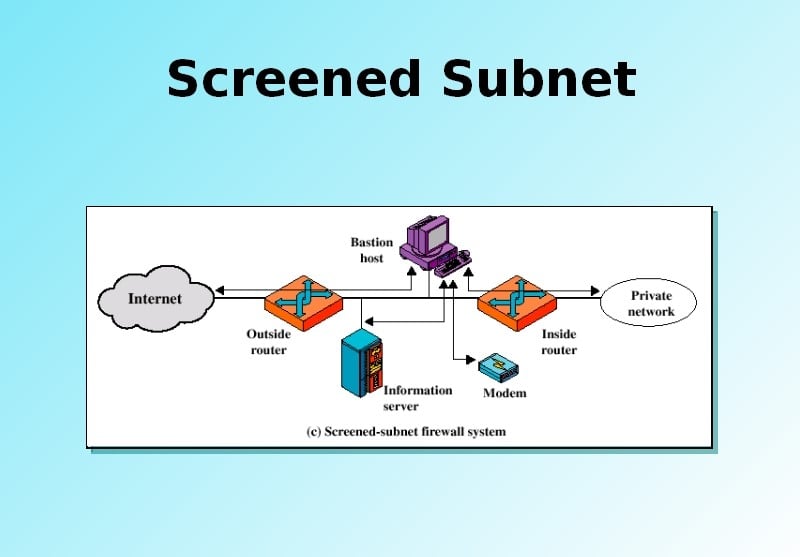

Key Components of a Screened Subnet
A typical screened subnet includes the following elements:
- External Firewall (Border Firewall) – This firewall separates the Internet from the screened subnet. It filters incoming traffic and ensures only legitimate requests reach the DMZ.
- Internal Firewall – Positioned between the screened subnet and the internal network, this firewall adds an extra layer of protection by controlling what traffic is allowed from the DMZ to the internal network.
- DMZ (Demilitarized Zone) – This is the screened subnet itself. It hosts public-facing services and is designed to absorb potential threats, preventing them from spreading to sensitive internal systems.
How Does It Work?
When a user from the internet tries to access a web service hosted by an organization, their request first hits the external firewall. If permitted, it reaches the appropriate server in the DMZ. Even if an attacker compromises this server, the internal firewall prevents direct access to the internal network, thereby containing the threat.
This multi-layered security model ensures that even if one layer is breached, the attacker doesn’t gain unrestricted access to internal resources.
Benefits of a Screened Subnet
Implementing a screened subnet offers several advantages:
- Enhanced Security: Isolates sensitive data and internal resources from public access.
- Controlled Access: Allows granular control over traffic flow between external and internal networks.
- Threat Containment: Limits the scope of potential breaches to the DMZ.
- Compliance: Helps meet regulatory requirements for data protection and network security.
Screened Subnet vs. Other Network Models
| Feature | Screened Subnet | Single Firewall | Dual Firewall Setup |
|---|---|---|---|
| Layers of Security | Multiple | One | Two |
| Isolation of Services | Yes (via DMZ) | No | Partial |
| Complexity | Moderate | Low | High |
| Best Use Case | Medium to large orgs | Small businesses | High-security environments |
Best Practices for Setting Up a Screened Subnet
- Use Separate Physical or Virtual Machines: Don’t host internal and external services on the same device.
- Apply the Principle of Least Privilege: Only allow necessary traffic through firewalls.
- Keep Systems Updated: Regularly patch servers in the DMZ.
- Monitor Network Activity: Use IDS/IPS to detect anomalies in real-time.
- Conduct Regular Security Audits: Ensure configurations meet current security standards.
Conclusion
A screened subnet is a critical part of modern network security architectures. By isolating external-facing services and using multiple firewalls, it offers robust protection against unauthorized access and cyber threats. Whether you’re running a small website or managing enterprise-level infrastructure, implementing a screened subnet can significantly improve your cyber security posture.
